THLB_PRODUCT CENTER

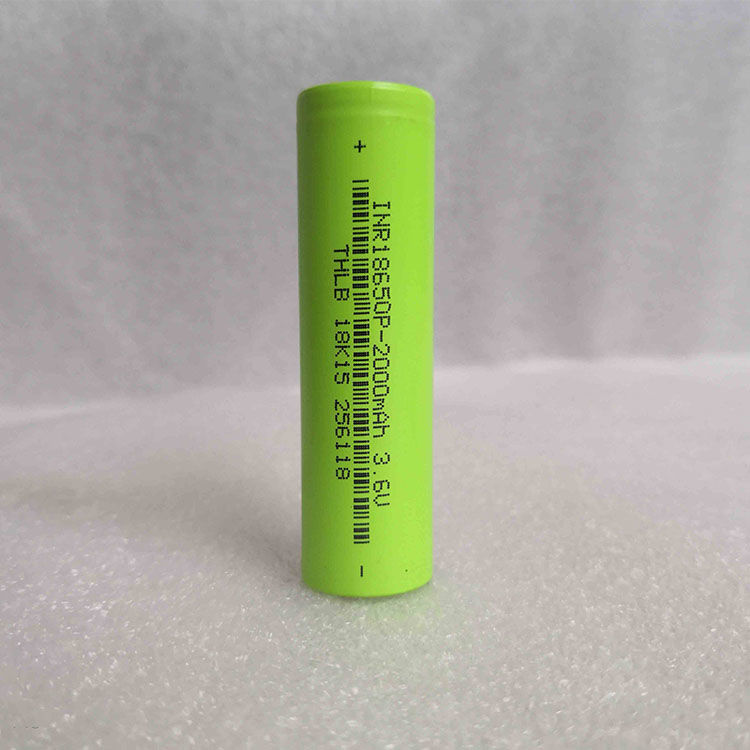

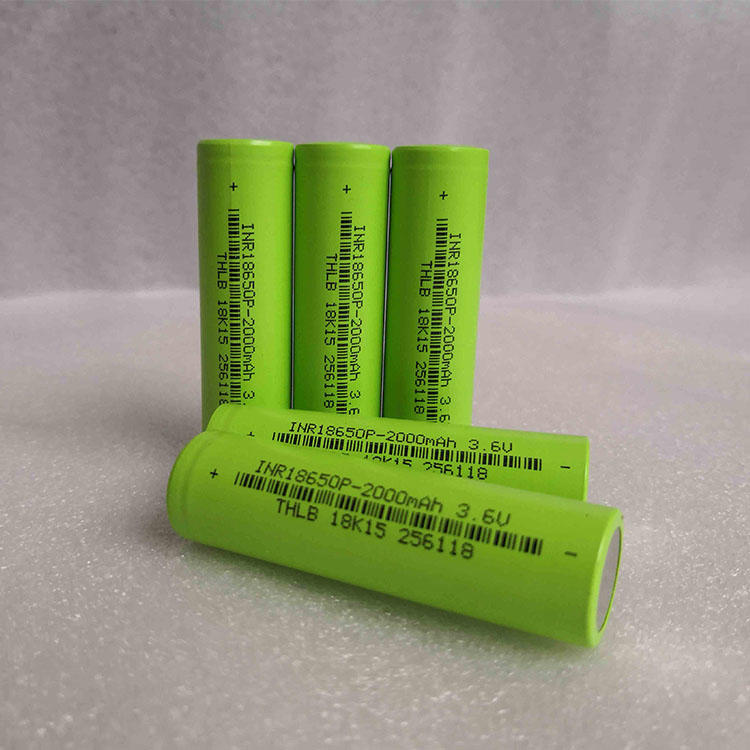

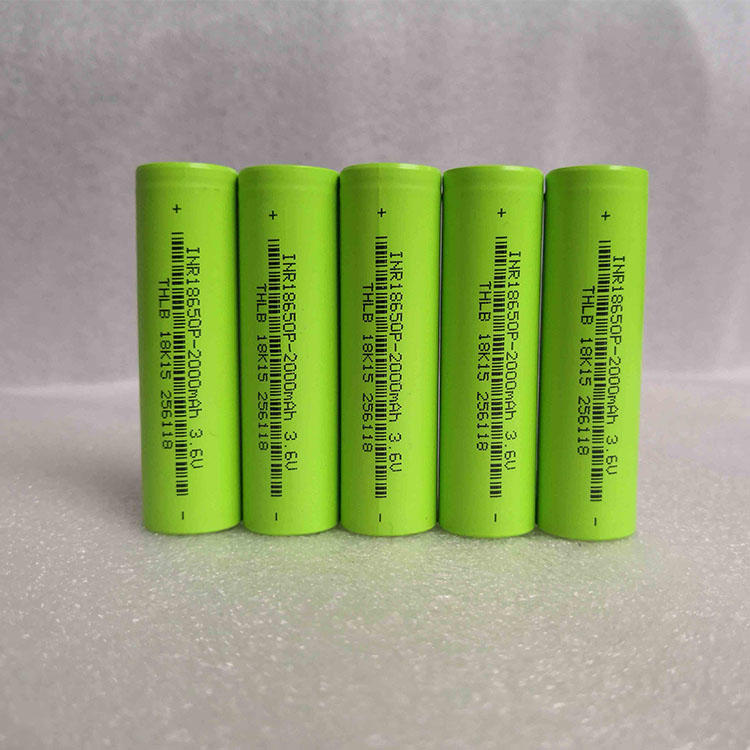

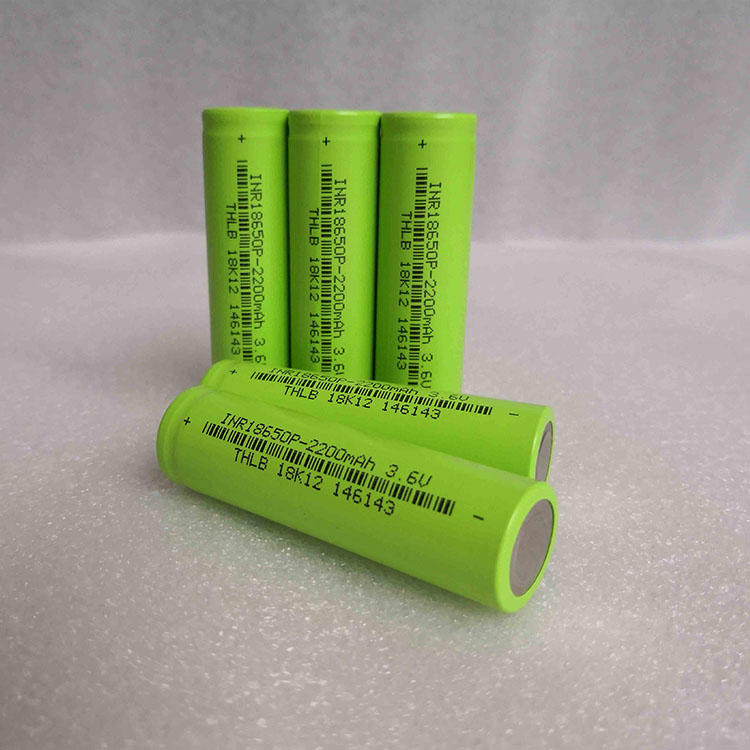

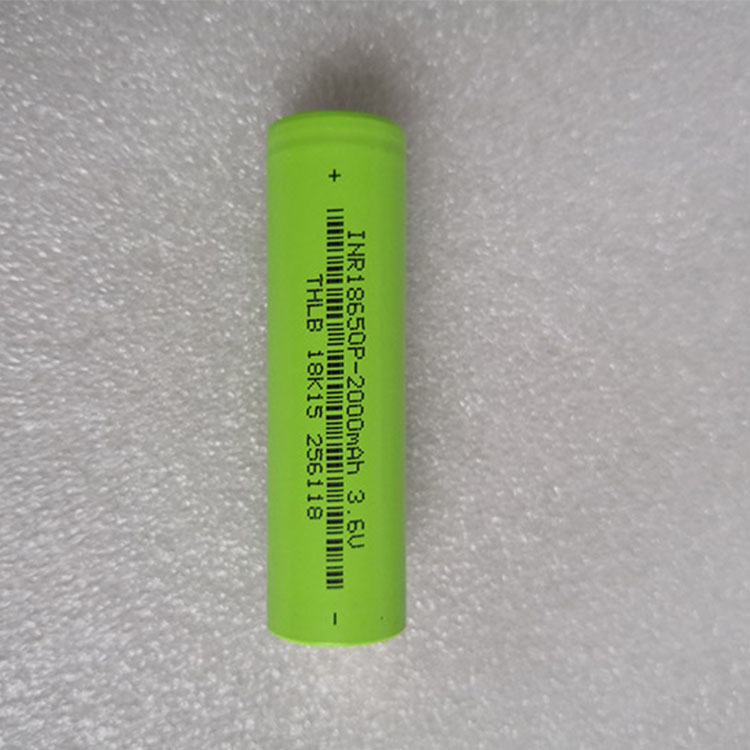

Lithium NCM power cell

LITHIUM ION POWER BATTERY CELL

● High voltage platform. NCM material volt platform is higher then LiFePO4 battery, highest can be 4.2V,discharge platform can reach 3.6V or 3.7V.
● High energy density.
● High tap density.
Mostly used for energy storage, solar-wind energy storage, UPS, power tools, light EV, medical equipment, mine lamp, lead acid replacement battery, portable equipments.

Dowload

■Eight core gene

Advanced material system, core deign concept, automatically production line, online QC testing, strict humidity control, international abuse testing, scientific traceability system, and execution system ensured

■ Main product

Type	Model	Rated voltage （V）	Rated capacity （mAh）	max charging rate	max discharge C	resistance （mΩ）	size（mm）	weight（g）
能量型	21700-4000mAh-3.6V	3.6	4000	1C	3C	≤20	Φ21.70*71.0	80
	21700-4500mAh-3.6V	3.6	4500	1C	3C	≤20	Φ21.70*71.0	82
	18650-2100mAh-3.6V	3.6	2100	1C	3C	≤30	φ18.15*65.2	45
	18650-2200mAh-3.6V	3.6	2200	1C	3C	≤30	φ18.15*65.2	45
	18650-2600mAh-3.6V	3.6	2600	0.5C	2C	≤20	φ18.35*65.3	44
	26650-4500mAh-3.6V	3.6	4500	1C	3C	≤30	φ26.15*65.6	93
	26650-5000mAh-3.6V	3.6	5000	1C	3C	≤30	φ26.15*65.6	95
倍率型	18650-2200mAh-3.6V	3.6	2200	2C	8C	≤20	φ18.15*65.2	45
	26650-4500mAh-3.6V	3.6	4500	2C	8C	≤15	φ26.15*65.6	93
