THLB_PRODUCT CENTER

LIFEPO4 battery

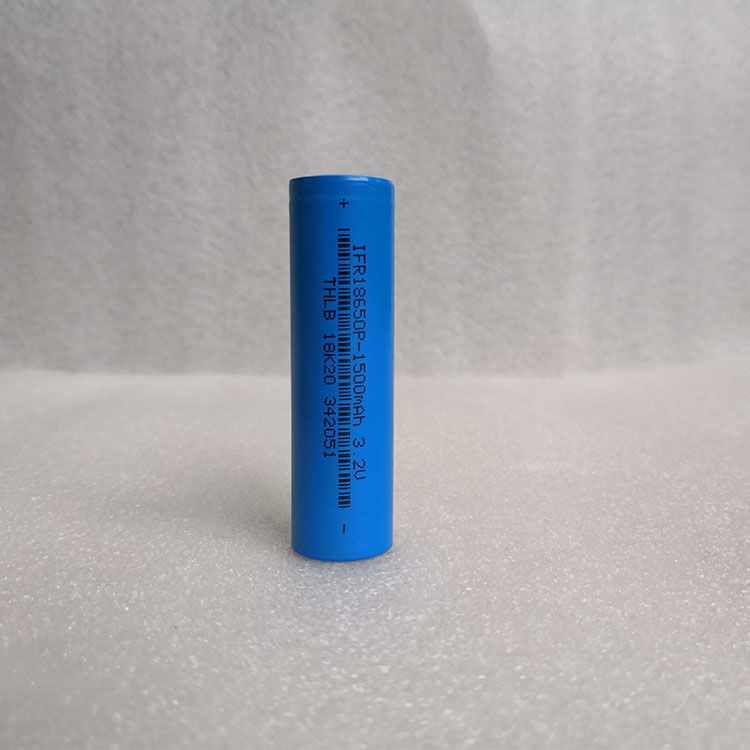

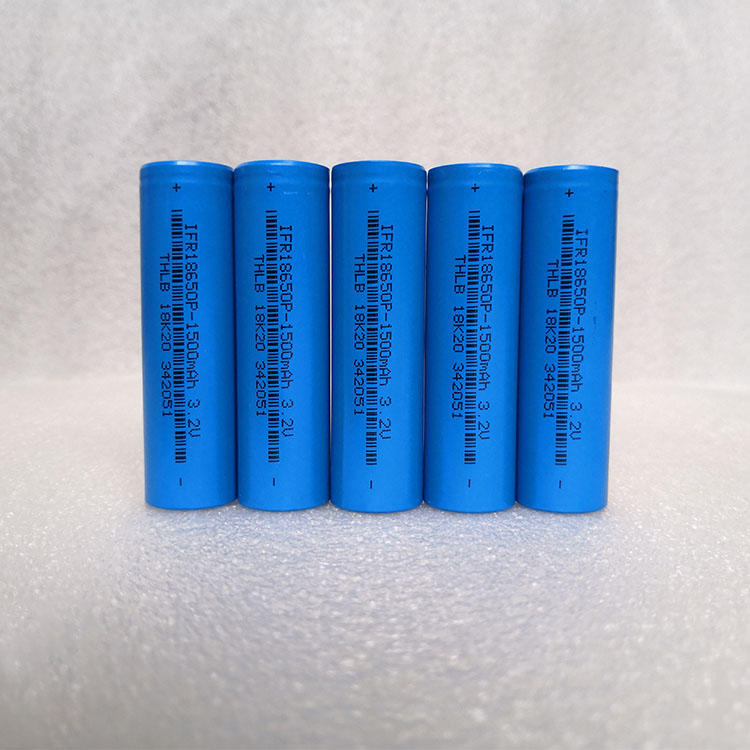

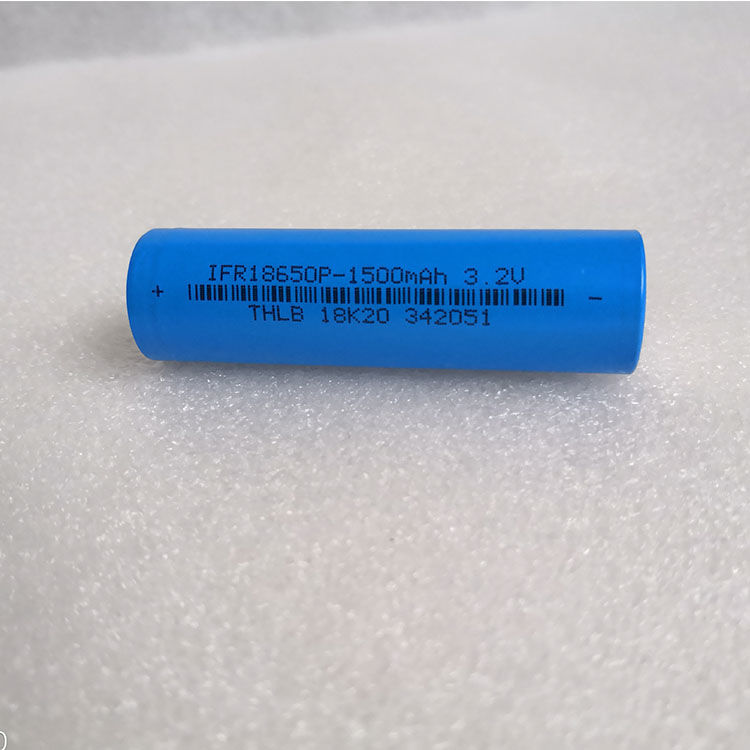

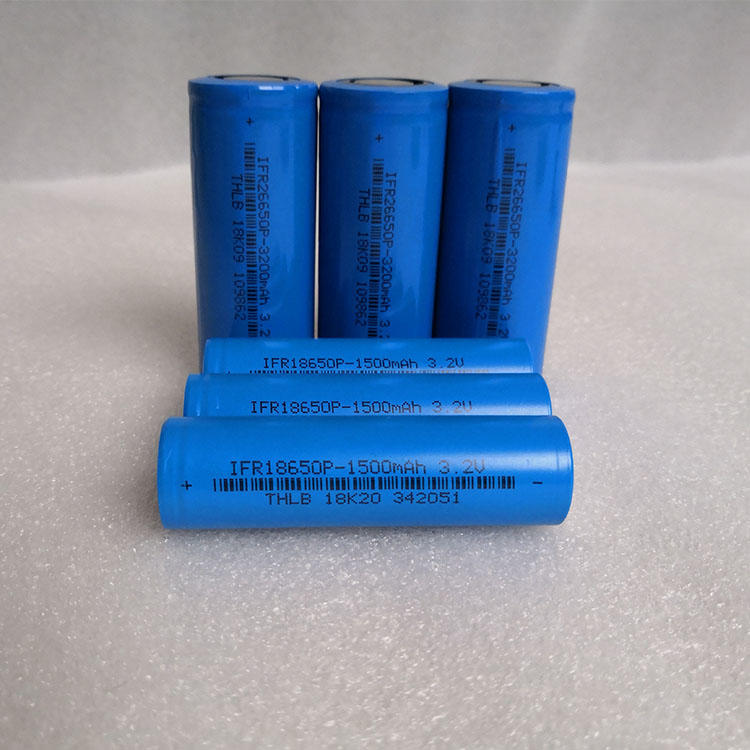

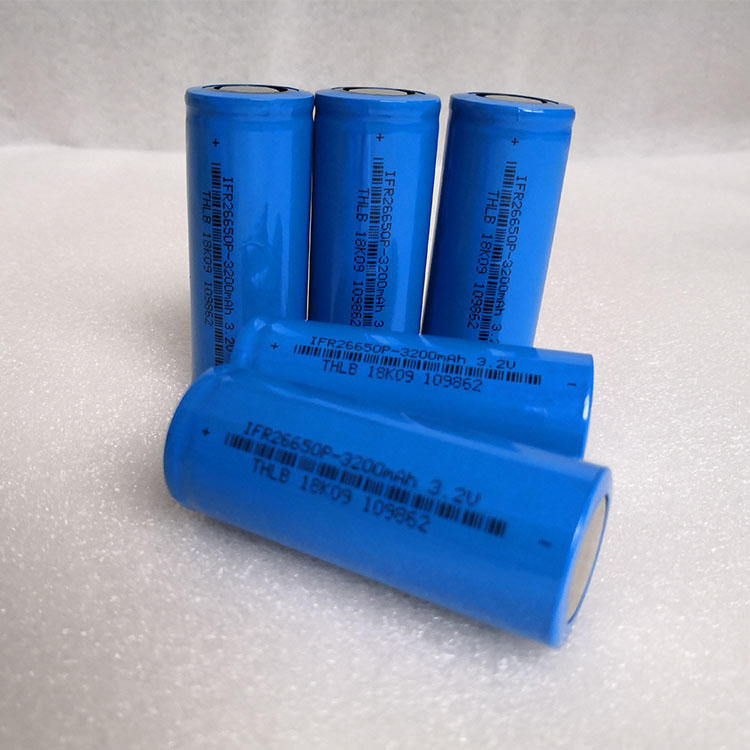

LITHIUM ION POWER BATTERY CELL

● Great safety performance.
● super long cycle life.
● Zero pollution and absolutely environment friendly.
● Light weight, and small size.
● Can be discharged with high current and power.
● no memory effect.
● Heat resistance.
Mostly used for energy storage, solar-wind energy storage, UPS, power tools, light EV, medical equipment, mine lamp, lead acid replacement battery, portable equipments.

Dowload

■Eight core gene

Advanced material system, core deign concept, automatically production line, online QC testing, strict humidity control, international abuse testing, scientific traceability system, and execution system ensured

■ Main product

Type	Model	Rated voltage（v）	Rated capacity （mAh）	max charging rate	max discharge C	resistance （mΩ）	size（mm）	weight （g）
Energy	18650-1400mAh-3.2V	3.2	1400	1C	3C	≤40	φ18.15*65.2	40
	18650-1500mAh-3.2V	3.2	1500	1C	3C	≤40	φ18.15*65.2	40
	18650-1600-mAh-3.2V	3.2	1600	1C	3C	≤40	φ18.15*65.2	40
	18650-1800-mAh-3.2V	3.2	1800	1C	3C	≤40	φ18.15*65.2	42
	26650-3000mAh-3.2V	3.2	3000	1C	3C	≤30	φ26.15*65.6	85
	26650-3200mAh-3.2V	3.2	3200	1C	3C	≤30	φ26.15*65.6	86
	26650-3400mAh-3.2V	3.2	3400	1C	3C	≤30	φ26.15*65.6	86
	26650-3600mAh-3.2V	3.2	3600	1C	3C	≤30	φ26.15*65.6	86
	26650-3800mAh-3.2V	3.2	3800	1C	3C	≤30	φ26.15*65.6	87.5
Power	18650-1400mAh-3.2V	3.2	1400	3C	10C	≤25	φ18.15*65.2	40
	26650-3000mAh-3.2V	3.2	3000	3C	10C	≤15	φ26.15*65.6	85
	18650-1100mAh-3.2V	3.2	1100	5C	30C	≤18	φ18.15*65.2	41
	26650-2300mAh-3.2V	3.2	2300	5C	20C	≤15	φ26.15*65.6	85
